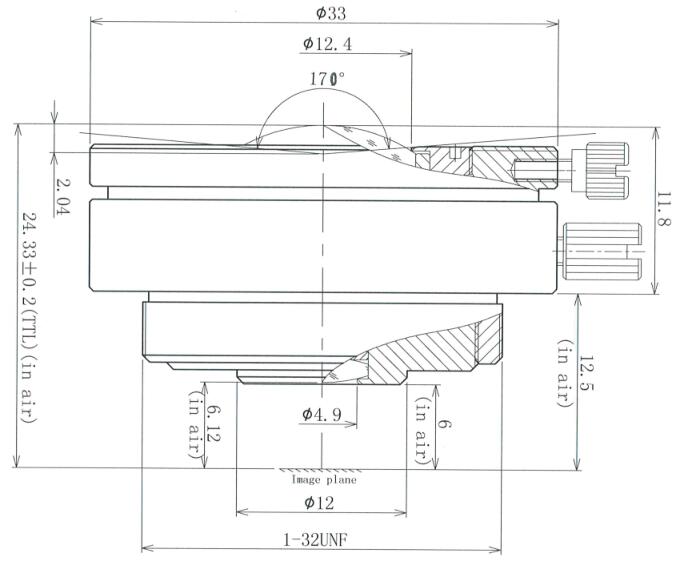

2.1mm F1.8 megapixel wide angle CS mount fixed CCTV lens for 1/3 sensor size – AC13F02118IRMM
SPECIFICATION
| Focal Length : | 2.1mm | |
| Image Circle : | 6mm | |
| TTL : | 24.33mm | |
| Back Focal Length : | 6.12mm | |
| Mount: | CS mount | |
| Aperture (F.NO) : | F1.8 | |
| Iris: | Fixed | |
| Sensor : | 1/3’’ CCD/CMOS | |
| (F.O.V.)(D/H/V): | 170°/130°/96° | |
| Relative illumination : | ≥55% | |
| CRA at Corner : | 12.6° | |
| Resolution : | Mega Pixel | |
| M.O.D: | 0.2m | |
| Effective Aperture : | Φ12.4mm | Front |
| Φ4.9mm | Rear | |
| Dimension： | Φ33×18.33mm | |
| Lens Construction： | 6-5 | |
| Model: | AC13F02118IRMM | |
PS: 2.1mm F1.8 megapixel wide angle CS mount fixed CCTV lens for 1/3 sensor size, 2.1mm m12 board lens 1/3 inch
