2/3″ format 8mm 20mp F4.0 5K m12 s mount compact machine vision FA fixed mini cctv board lens – ACHF080402320MP
SPECIFICATION
| Focal Length: | 8mm |
| Resolution: | 20MP |
| Image Format: | 2/3″ |
| Image Circle: | ф11.0mm(MAX) |
| ML: | 25.59~25.99mm |
| Iris Type: | Fixed |
| Focus Type: | Manual |
| Mount: | M12*P0.5 |
| F/NO : | F4.0 |
| FFL（M) : | 3.43~3.83mm |
| BFL（O): | 4.33mm |
| FOV(D/H/V): | 68.4°/56.3°/43.2° 2/3” |
| 57.2°/46.8°/35.8° AR2020 1/1.8″ | |
| TV distortion: | <-3% |
| MOD(m): | 0.15m~∞ |
| Relative Ill.: | >64.69% |
| Chief Ray Angle: | <20º |

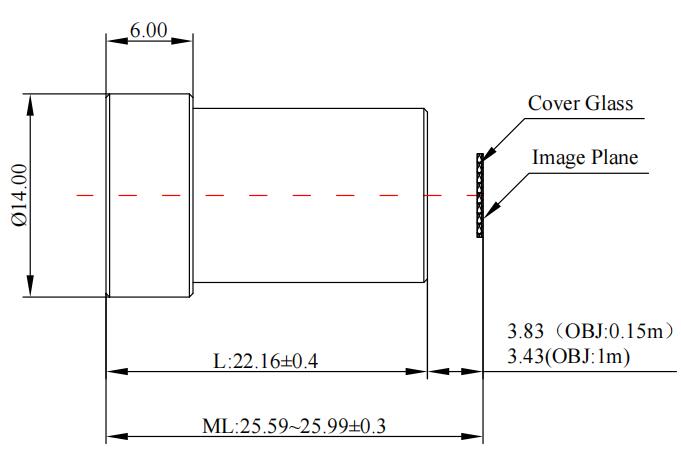

| Dimension Figure: | ф14.00*L22.16mm |
| Lens Structure: | 8G |
| Waterproof: | NO |
| Weight: | 6.5g |
| Operating Temperature: | -20° ~+85° |
| Storage Temperature: | -20° ~+85° |
| Model: | ACHF080402320MP |
PS: 2/3″ format 8mm 20mp F4.0 5K m12 s mount compact machine vision FA fixed mini board lens, 1.1″ 20mp uhd c mount industrial vision C-MT FA lenses
