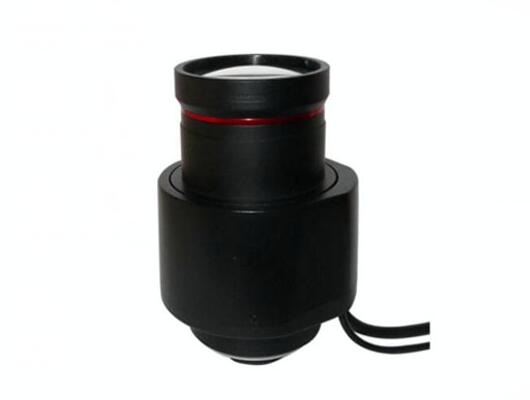

10 to 60mm 2mp auto iris 2/3″ format F/1.4 C mount cctv varifocal zoom lens – ACH1060ZD
SPECIFICATION
| Focal Length : | 10-60mm |
| Resolution: | 2MP |
| Back Focus : | 13.09mm |
| Mount : | C mount |
| F/No: | F1.4 |
| Format : | 2/3” |
| Iris Range : | F1.4 ~ Close |
| Driving Voltage : | 3.5 V |
| Iris Type : | DC Auto Iris |
| Angle of View : | 51° ~ 11° |
| Distortion : | <12~1% |
| IR Correction: | OK |
| MOD: | 0.5m |
| Coating Range: | 400nm~950nm |
| Dimension: | 59.5 x 126.98mm |
| Filter Thread : | M49 x 0.75 |
| Operating Temperature: | -20℃~+65℃ |
| Model : | ACH1060ZD |
PS: 10 to 60mm auto iris 2/3″ format F/1.4 C mount cctv varifocal zoom lens, 12-120mm 1/1.8″ auto iris C mount manual zoom varifocal lens
