8.3mm 1/3.6″ F4.0 8mp M6 / M8 Mount miniature 4k low distortion board lens for medical biometrics industrial scanning – ACHF08340NDM6 ACHF08340NDM8
SPECIFICATION
| Focal Length : | 8.3mm |
| Resolution : | 8MP |
| Image Format : | 1/3.6″ |
| Image Circle: | Φ5.0mm (Max) |
| Mount : | M6*P0.35 / M8*P0.35 |
| F/No : | F4.0 |
| Angle of View (DxHxV): | 23°x18.5°x14° 1/5” BF2557 |
| OPT Distortion : | <0.56% |
| Relative ill: | >80% |
| CRA: | <29° |
| TTL: | 9.0mm |

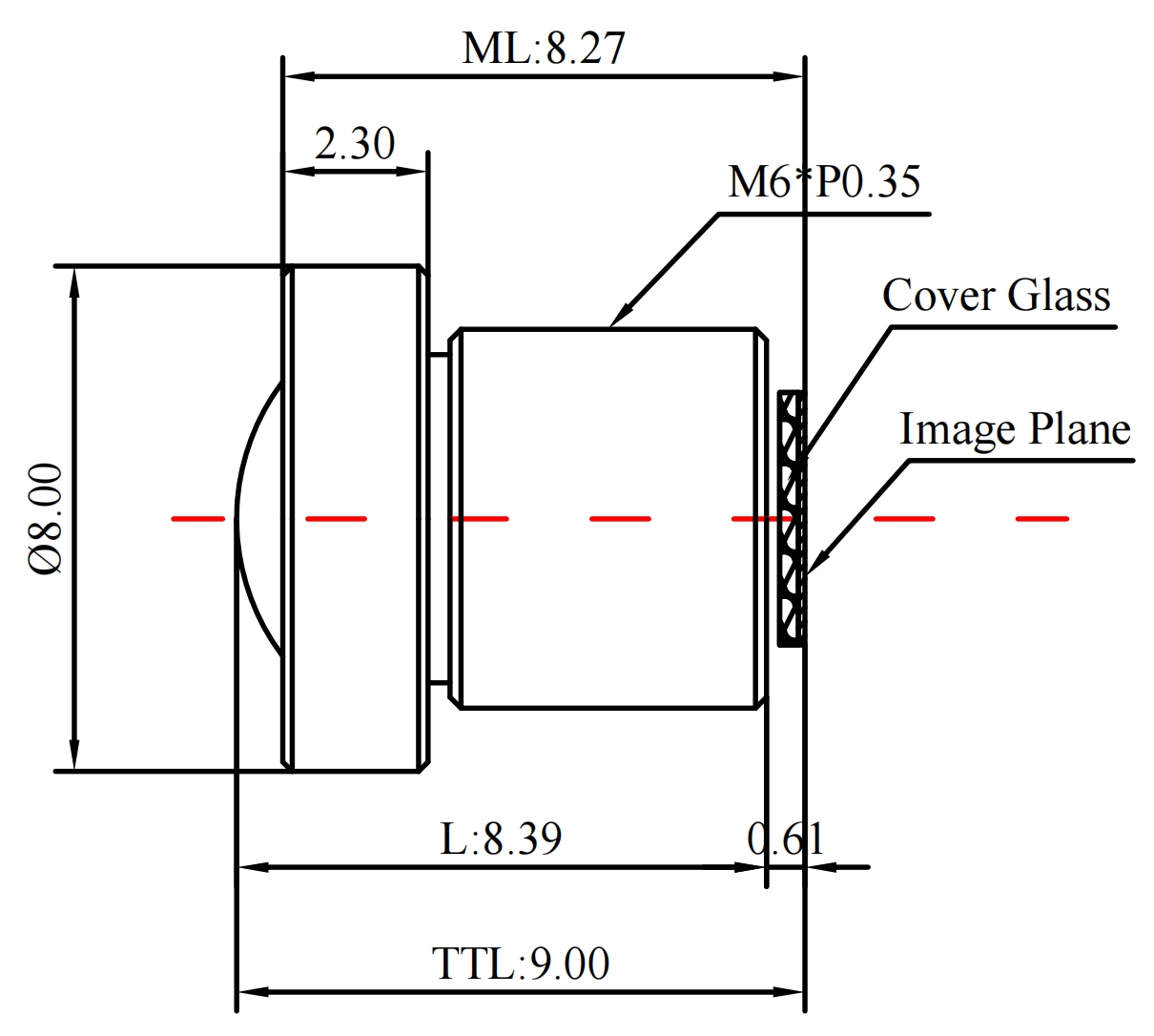

| Dimension : | Φ8.0×8.39mm |
| M.O.D: | 0.1m-∞ |
| FFL (M): | 0.61mm |
| BFL (O)： | 1.31mm |
| Iris: | Fixed |
| Lens Structure: | 6G |
| Suitable： | IR650 BP810 BP850 BP940 |
| Waterproof: | No |
| Operating Temperature: | -25℃ – +85℃ |
| Storage Temperature | -25℃ – +85℃ |
| Model : | ACHF08340NDM6 / ACHF08340NDM8 |
PS: 8.3mm 1/3.6″ F4.0 8mp M6 / M8 Mount miniature 4k low distortion board lens for medical biometrics industrial scanning, 8.5mm 1/1.8 F2.5 m12 macro board lens
