M6 mount VCM holder DC voice coil motor actuator for lenses auto focus mobile phone camera – ACVCM604635M6

BACK
CONTACT US TODAY

SPECIFICATION

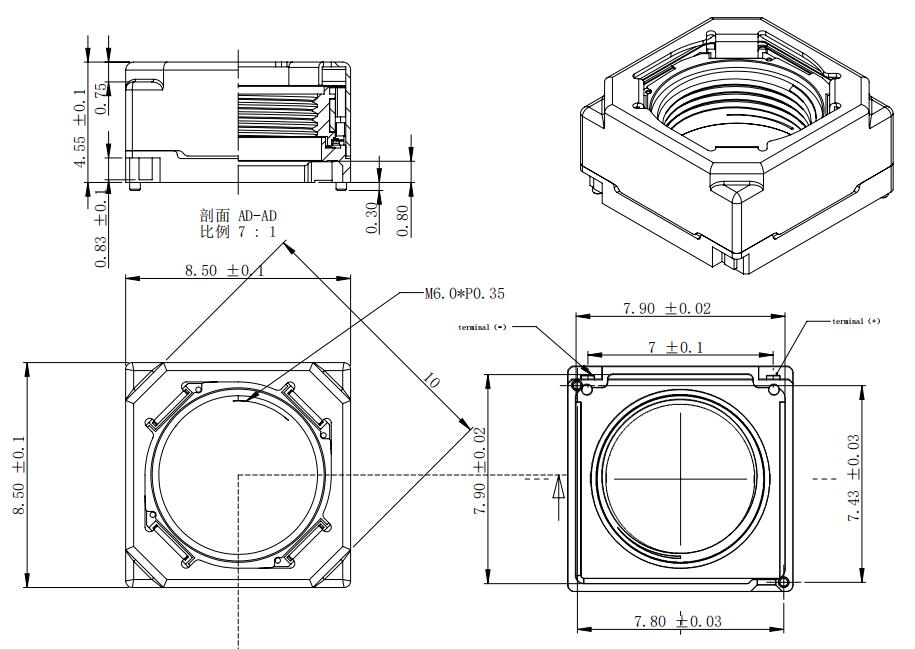

VCM Outline Dimensions: 8.5×8.5×4.55mm (without terminal)
Lens Diameter: M6*P0.35
Rated current: 95mA
Max Rated current: 110mA (Operatting)
Insulation Resistance: >1MΩ (DC=50V, between Yoke and Terminals)
Resistance between terminals: 18±3Ω
VCM Weight: ≤0.5g  (without Lens)
Lens Weight: ≤0.12g
Torque: 20gf·cm~120gf·cm
Rated Stroke: ≥0.2mm (@95mA) upward
Hysteresis: ≤10μm upward
Starting Current: 20～40mA  upward
Sensitivity: 3μm/mA~8μm/mA  upward
Dynamic Tilt: ≤15’upward
Posture Deviation: ≤50μm
Linear: ≤15μm upward
AF Current: ≤10μm upward
Operating Environment: -30℃～70℃  90% RH(max)
Storage Environment: -40℃～85℃  90% RH(max)
Model: ACVCM604635M6



PS: M6 mount VCM holder DC voice coil motor actuator for lenses auto focus mobile phone camera, M6 mount lens 4.2mm 5mp 1/3 M6x0.35 lenses
