Picking the right lens for your machine vision camera is not just about making it fit — it is key to how well the whole setup works. A bad choice in lens can mess up even the best imaging sensor. For exact checks, size measurements, or spotting objects, the features of the lens directly affect how good and dependable your outcomes are.
Importance of Selecting the Appropriate Lens for a Machine Vision Camera
Impact on Image Quality and System Accuracy
The lens acts as the eye of the imaging setup. It is the most important part of a video watch system; its level directly changes how the camera performs overall — this holds true for industrial 3D cameras and machine vision setups too. A top-notch lens that fits well provides the best sharpness and clearness needed for right image handling.
Errors in picking a lens can bring in several problems:
- Distortion changes space measurements
- Vignetting leads to uneven light across the picture
- Misalignment cuts down on focus and detail
Also, the lens resolution should be greater than 50 line pairs, and the smaller the camera sensor size, the higher the required lens resolution. The more sharpness you need from your camera sensor, especially for those with tiny pixel spacing, the more vital it is to pick a lens with proper optical power to resolve things.
Role in Meeting Application-Specific Requirements
Machine vision jobs differ a lot — from auto checks in chip making to reading license plates on roads. Various tasks call for different optical skills:
- Exact-focused checks may need telecentric lenses
- Big-area watching gains from wideangle lenses
- Fast imaging requires large-aperture lenses for better light flow
Once the lens focal length f is determined, so system designers must balance focal length, resolution, and working distance for optimal performance.
Key Parameters to Evaluate in Lens Selection
Sensor Size Compatibility
The link between sensor and lens is basic. The details of the camera lens should come from the size of the camera’s CCD sensor; the two should work together. If a lens’s image circle is smaller than the sensor, you will notice dark edges or cut-off pictures.
| Sensor Size | Matching Lens Spec |
| 1/2″ | 1/2″ lens |
| 1/3″ | 1/3″ lens |
| 1/4″ | 1/4″ lens |
Putting a too-small lens on a big sensor will cause less field cover and loss in quality. Always match or use a bigger lens.
Focal Length and Field of View (FOV) Considerations
Focal length sets how much of a scene gets caught and at what zoom level. A shorter focal length gives a bigger field of view and a wider range to see, but far objects will not show up very sharp. On the other hand, a long focal length provides a narrow field but detailed zoom — great for picking up fine bits from afar.
For example:

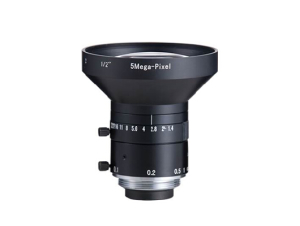

- A 4mm lens on a 1/2” sensoroffers a wide view, good for watching conveyor belts
- A 25mm lens zeros in tightly on small parts in PCB checks
Working Distance and Its Effect on Imaging Geometry
Working distance impacts viewpoint and picture clearness. Short distances can create shadows or focus troubles, while a distance that is too long cuts resolution unless you make up for it with longer focal lengths.
This matters a lot for systems with 3D cameras where imaging geometry directly affects depth accuracy.
Influence of Aperture and Depth of Field on System Performance
Aperture Settings and Light Control
Aperture (f-number) handles both light coming in and depth of field (DOF). The smaller the f-number, the larger the aperture (a larger aperture allows for shooting in darker environments). However, the wider the aperture (i.e., the lower the f-number), the shallower the depth of field, which could cause parts of your object to fall out of focus.
For quick capture in dim light, a wide aperture helps. But if you need even focus over object height, smaller apertures work better even though they need more light or longer times to expose.
Managing Depth of Field for Multi-Level Objects
Jobs like scanning barcodes on boxes or checking solder joints gain from more depth. Depth of field is roughly straight linked to the aperture F-number. That is, the larger the aperture value (i.e., the smaller the relative aperture opening), the greater the depth of field. Use F8.0 or higher when you need steady sharpness over different levels — but plan for longer exposure times.
Lens Mount Types and Mechanical Compatibility
Overview of Common Mount Types in Machine Vision Systems
Lens mount fit is often missed but key:
- C-mount: The distance from the lens mounting surface to the focal point is 17.526mm.
- CS mount: The distance from its lens mounting reference surface to the focal point is 12.5mm.
- S-mount: Used for compact cameras; not ideal for high-precision tasks
A C-mount lens can fit a CS-mount camera with an adapter, but not vice versa. Mechanical stability and alignment are essential — especially in high-vibration environments.
Optical Resolution and Pixel Size Matching
The optical resolution should match your camera’s pixel pitch to avoid aliasing or blur. For a 1/2-inch format CCD sensor, the minimum resolution of the lens should be 38 lp/mm. As pixel sizes shrink below 2.5µm in modern sensors, standard lenses may no longer suffice.
AICO, a specialized manufacturer of industrial optics, provides high-resolution lenses optimized for today’s small-pixel machine vision sensors — ideal when using modern high-MP cameras.
Specialized Lenses for Unique Machine Vision Applications
Macro Lenses for Close-Up Inspection Scenarios
Made for short working distances with high zoom, macro lenses are perfect for spotting small flaws or tiny structures — like IC pins or fiber connectors.
Infrared and UV-Compatible Lenses for Non-Visible Imaging Needs
Some jobs need to see what eyes can’t — heat marks or glowing tags. An infrared (IR) filter is a type of filter that allows infrared light wavelengths to pass through while blocking visible light wavelengths. Make sure the lens material works with your target wavelength, whether IR or UV.
AICO also offers IR compatible machine vision camera lens options tailored for such applications across manufacturing and safety fields.
Tools and Methods to Support Lens Selection Decisions
Using Online Lens Calculators and Simulators
Many makers provide online tools to guess FOV, working distance, and resolution needs based on your camera type and job details. These aid in fast narrowing down good picks.
Consulting Manufacturer Specifications and MTF Charts
Look at Modulation Transfer Function (MTF) curves to grasp how sharpness changes over the image area. The intrinsic indicators describing the image quality of a lens are its optical transfer function and distortion. Solid MTF work ensures trusty edge spotting and flaw finding over your full FOV.
Practical Considerations When Finalizing a Lens Choice
Environmental Factors: Vibration, Temperature, Contamination Risks
Factories can be tough places. Shaking, dust, or very hot or cold spots can throw off lenses or wear down their coatings as time goes. Tough lenses with lock parts give better lasting steadiness.
Budget Constraints vs. Performance Requirements
Not every setup needs fancy optics. When growing over many production lines, weigh cost against how well it works. For lots of jobs, middle-level lenses with decent resolution might do.
FAQs
Q1: Can I use any C-mount lens with my machine vision camera?
Only if your camera supports C-mount; otherwise, you may need an adapter for CS-mount compatibility.
Q2: What’s the difference between telecentric and standard lenses?
Telecentric lenses eliminate perspective distortion by maintaining consistent magnification regardless of object distance.
Q3: How do I calculate the correct focal length for my setup?
Use online calculators by inputting sensor size, desired FOV, and working distance — many are available from lens manufacturers like AICO.
Q4: Can one lens cover both visible and infrared imaging?
Only if it’s made with IR-transmissive materials. Not all glass types support both ranges effectively.
Q5: Why does my image have dark corners?
Your lens image circle may be smaller than your sensor size — ensure compatibility to avoid vignetting.
